Overview
The fire piston, also known as a fire syringe or slam rod fire starter, is a traditional device of ancient Southeast Asian origin designed specifically for kindling fire. This tool operates on the fundamental thermodynamic principle of adiabatic compression, where a gas is heated rapidly due to a sudden decrease in volume. The device typically consists of a cylinder and a piston, which work in tandem to compress the air trapped within the chamber. When the piston is slammed down with sufficient speed, the air pressure increases dramatically, causing a sharp rise in temperature that is often sufficient to ignite a small piece of tinder placed at the bottom of the cylinder.
Historically, the fire piston has been a significant cultural artifact in the Philippines, particularly within the Luzon region, where it has been used by various indigenous communities for centuries. It represents a sophisticated understanding of physics long before the widespread adoption of modern ignition tools. The mechanism relies on the relationship between pressure, volume, and temperature in an ideal gas, often expressed by the formula PVγ=constant, where γ is the adiabatic index. This scientific principle allows the fire piston to generate temperatures high enough to create an ember from materials such as charcoal dust, tobacco, or dried moss, which can then be blown into a flame to start a larger fire.
As a historic tool, the fire piston remains an important element of Southeast Asian heritage, reflecting the ingenuity of ancient craftsmen who utilized simple mechanical advantages to harness natural forces. Its continued recognition highlights the intersection of traditional craftsmanship and scientific accuracy in the region's material culture.
How does a fire piston work?
The fire piston operates on the principle of adiabatic compression, a thermodynamic process where the rapid compression of a gas causes a significant rise in temperature without significant heat exchange with the surroundings. When the piston is slammed into the cylinder, the air trapped inside is compressed quickly enough that heat does not have time to escape through the cylinder walls. This sudden increase in pressure forces the air molecules closer together, increasing their kinetic energy and thus the temperature of the gas.
Thermodynamic Mechanism
The relationship between pressure, volume, and temperature in an ideal gas during adiabatic compression can be described by the formula T2=T1(V1/V2)γ−1, where T represents temperature, V represents volume, and γ is the adiabatic index (approximately 1.4 for air). As the volume decreases rapidly, the temperature rises sharply. In a typical fire piston, this process can raise the temperature of the air to approximately 260 °C, which is often sufficient to ignite a small piece of tinder, such as charcoal dust or dried leaf material, placed at the bottom of the cylinder.
Comparison to Diesel Engines
The fire piston shares a fundamental mechanical similarity with the diesel engine. Both systems rely on the heat generated by compressing air to ignite the fuel, rather than using a spark plug. In a diesel engine, air is compressed to a high pressure, raising its temperature above the auto-ignition point of diesel fuel. Similarly, the fire piston compresses air to ignite tinder. However, the fire piston is a simpler, manual device that achieves this effect through a single, rapid stroke, whereas a diesel engine uses a continuous cycle of compression and expansion.
| Parameter | Fire Piston | Diesel Engine |
|---|---|---|
| Compression Ratio | ~20:1 to 30:1 | ~14:1 to 24:1 |
| Ignition Source | Adiabatic Heat | Adiabatic Heat |
| Fuel | Tinder (Charcoal/Leaf) | Diesel Fuel |
| Peak Temperature | ~260 °C | ~500 °C to 700 °C |
The efficiency of the fire piston depends on the speed of the stroke and the seal between the piston and the cylinder. A faster stroke minimizes heat loss, ensuring that the temperature rise is sufficient to reach the ignition point of the tinder. This ancient Southeast Asian device demonstrates a practical application of thermodynamic principles that predates modern engineering by centuries.
Construction and materials

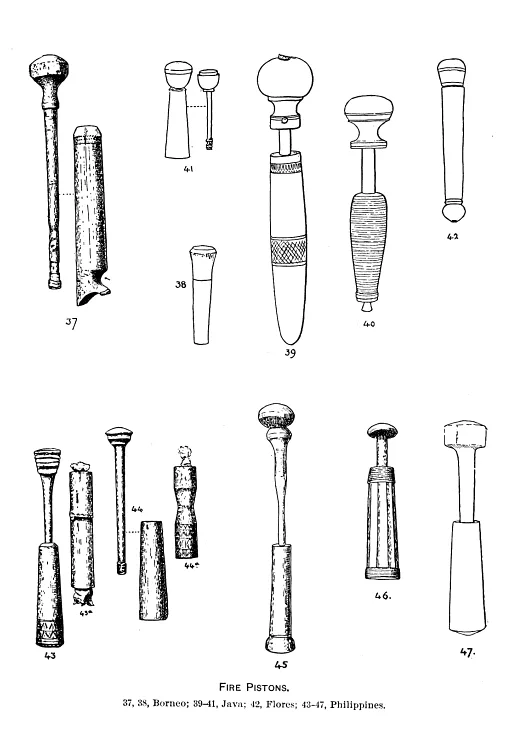

Fire pistons are traditionally crafted from materials readily available in Southeast Asian environments, with wood, bamboo, horn, and metal being the most common choices. The selection of material significantly influences the device's durability and thermal properties. Wooden pistons often feature a hardwood cylinder and a softer wood piston head to allow for a snug fit without excessive friction. Bamboo is frequently used for its natural cylindrical shape and lightweight properties, making it an ideal choice for portable fire-starting. Horn and metal components are sometimes incorporated to enhance the seal or add structural integrity to the device.
Dimensions and Specifications
The physical dimensions of a fire piston are critical to its functionality. The cylinder length typically ranges from 3 to 6 inches (approximately 7.6 to 15.2 cm), while the piston rod length can extend from 10 to 14 inches (approximately 25.4 to 35.6 cm). These dimensions allow for sufficient stroke length to achieve the necessary compression ratio. The internal diameter of the cylinder and the diameter of the piston head must be closely matched to ensure an effective seal.
| Component | Typical Range | Notes |
|---|---|---|
| Cylinder Length | 3 to 6 inches | Determines the stroke length |
| Piston Rod Length | 10 to 14 inches | Allows for a full compression stroke |
| Internal Diameter | Varies | Must match piston head diameter |
The seal mechanism is a crucial aspect of the fire piston's construction. A tight seal between the piston head and the cylinder wall is necessary to minimize air leakage during the rapid compression phase. This seal is often achieved through the use of a natural lubricant, such as oil or grease, applied to the piston head. In some designs, a leather or cloth ring is wrapped around the piston head to enhance the seal. The quality of the seal directly impacts the efficiency of the adiabatic compression process.
History in Southeast Asia and Madagascar
The fire piston is a device of ancient Southeast Asian origin used to kindle fire. It operates on the principle of the heating of a gas by rapid and adiabatic compression to ignite a piece of tinder, which is then used to set light to kindling. This technology represents a significant development in pre-industrial thermodynamics, relying on the relationship between pressure, volume, and temperature in a gas. The fundamental physics can be described by the adiabatic process equation, where the temperature of the air inside the cylinder increases sharply as the volume decreases rapidly.
Austronesian Origins and Spread
The device is widely considered to have Austronesian origins, reflecting the broad cultural and technological exchanges across the maritime regions of Southeast Asia. The Austronesian expansion facilitated the spread of the fire piston from its likely points of origin to various island groups and coastal regions. This diffusion is evident in the widespread presence of the device across the region, from the Malay Peninsula to the Philippines and Indonesia. The consistency in design and function across these diverse locations suggests a common ancestral technology that was adapted to local materials and needs.
Regional Variations and Terminology
In different parts of Southeast Asia, the fire piston is known by various local names, reflecting linguistic diversity and cultural adaptation. In the Philippines, it is referred to as the sulpakan, a term used in several Luzon communities. In Indonesia, particularly in Java and surrounding islands, it is known as the gobek api. These terms highlight the integration of the device into local material culture and daily life. The use of the fire piston in Thailand and the Malay Peninsula further demonstrates its widespread adoption across the region. Each variation may feature slight differences in materials, such as bamboo, wood, or brass, but the core mechanism remains consistent.
Presence in Madagascar
The spread of the fire piston extends beyond mainland and island Southeast Asia to Madagascar. This presence is often cited as evidence of ancient maritime connections between Southeast Asia and the eastern coast of Africa. The Austronesian migration to Madagascar, one of the most significant long-distance pre-modern migrations, likely carried the technology across the Indian Ocean. In Madagascar, the fire piston serves as a tangible link to the island's Austronesian heritage, coexisting with other cultural imports. The device's survival in Madagascar underscores its utility and the effectiveness of the adiabatic compression principle in diverse environmental conditions.
The historic status of the fire piston in regions like Luzon indicates its continued relevance or preservation as a cultural artifact. While modern ignition methods have become prevalent, the fire piston remains a symbol of traditional craftsmanship and scientific ingenuity. Its study provides insights into the technological capabilities of ancient Southeast Asian societies and their understanding of physical principles long before formal scientific documentation.
European discovery and the diesel engine
European scientific recognition
The fire piston transitioned from a localized Southeast Asian tool to a subject of European scientific inquiry in the 18th century. In 1745, the Italian Benedictine abbot and naturalist Agostino Ruffo documented the device during his travels. Ruffo’s observations provided one of the first detailed European accounts of the mechanism, highlighting its efficiency in kindling fire through rapid compression. This documentation helped bridge the gap between indigenous technological knowledge and European empirical science, establishing the fire piston as a valid subject for thermodynamic study.
Influence on the diesel engine
The thermodynamic principles underlying the fire piston directly influenced the development of the internal combustion engine. Rudolf Diesel, the inventor of the diesel engine, drew significant inspiration from the device. According to historical accounts, Diesel was inspired by the fire piston demonstrated by Carl von Linde, a prominent German engineer and inventor. The fire piston operates on the principle of adiabatic compression, where the rapid compression of air within the cylinder generates sufficient heat to ignite tinder. This process is described by the thermodynamic relationship where pressure and volume changes result in a temperature increase, often expressed in simplified form as T2=T1(V2V1)γ−1, where γ is the heat capacity ratio. Diesel applied this concept to his engine design, utilizing the compression of air to reach ignition temperatures for fuel, thereby creating a highly efficient power source.
José Rizal’s contribution
The fire piston also holds significance in the collection of José Rizal, the Philippine national hero and polymath. During his time in Europe, Rizal contributed to the preservation of Southeast Asian artifacts, including fire pistons. He donated examples of the device to the Berlin Museum, helping to showcase the technological sophistication of Southeast Asian cultures to a European audience. Rizal’s efforts ensured that the fire piston was recognized not merely as a primitive tool but as an engineered device with distinct cultural and scientific value. This contribution aligns with his broader interest in documenting and preserving the heritage of the Philippines and its neighbors, reinforcing the device’s status as a historic artifact of regional importance.
Worked examples
The operation of a fire piston relies on the rapid adiabatic compression of air within a cylindrical chamber, a principle that transforms mechanical energy into thermal energy to ignite tinder. This process requires precise coordination between the piston rod, the cylinder, and the combustible material. The following examples illustrate the step-by-step mechanics of this traditional Southeast Asian fire-starting method.
Example 1: Standard Compression and Ignition
First, a small amount of tinder, such as char cloth or dry plant fibers, is placed into the bottom of the cylinder. The piston rod is then inserted into the cylinder, ensuring a tight seal to minimize air leakage. The user holds the cylinder firmly and pushes the piston rod down with a quick, forceful motion. This rapid descent compresses the air trapped between the piston head and the tinder. As the air volume decreases, its temperature rises sharply due to adiabatic compression. When the temperature exceeds the ignition point of the tinder, a small flash or glow appears. The user must then withdraw the piston rod quickly to expose the glowing ember to oxygen. Finally, the tinder is transferred to a larger bed of kindling and fanned gently to sustain the flame.
Example 2: Managing Air Leakage and Seal Integrity
In cases where the seal between the piston rod and the cylinder wall is not perfect, air leakage can reduce the efficiency of the compression. To mitigate this, the user may apply a thin layer of oil or grease to the piston rod to create a tighter seal. Alternatively, a leather or rubber ring can be used around the piston head. The procedure remains the same: place the tinder, insert the piston, and compress rapidly. However, the user must ensure that the downward motion is swift enough to minimize the time available for air to escape. If the compression is too slow, the heat generated may dissipate before reaching the ignition temperature. After compression, the withdrawal and fanning steps are identical to the standard method.
Example 3: Adjusting for Different Tinder Types
Different types of tinder require varying degrees of compression and heat. For example, char cloth ignites at a lower temperature than dry grass or bark fibers. When using char cloth, the user may need to apply slightly less force or compress the air to a smaller volume to achieve ignition. Conversely, denser tinder materials may require a more forceful compression to generate sufficient heat. The user must experiment with the speed and force of the piston stroke to find the optimal compression for the specific tinder being used. Once the tinder glows, it is withdrawn and fanned to create a sustainable flame. This adaptability makes the fire piston a versatile tool for various environmental conditions.
