Pantabangan Dam: Engineering, History and the Submerged Town

Overview

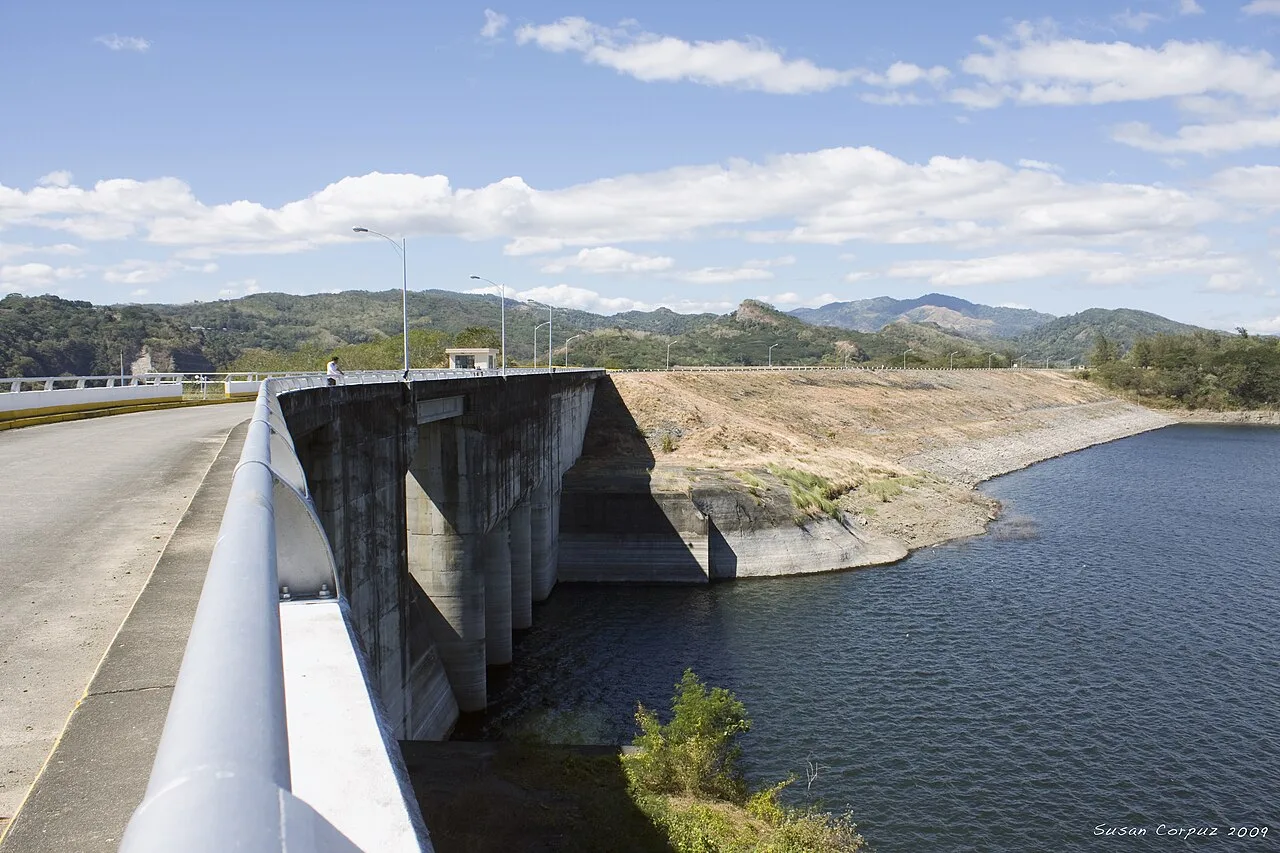

The Pantabangan Dam is an earth-fill embankment structure situated on the Pampanga River within the municipality of Pantabangan in the province of Nueva Ecija, Luzon. As a critical piece of infrastructure in the Central Luzon region, the dam serves a multi-purpose role, delivering essential water for irrigation, generating hydroelectric power, and providing significant flood control capabilities through its expansive reservoir, known as Pantabangan Lake. The facility is recognized for its substantial scale, with the reservoir considered one of the largest in Southeast Asia and notably one of the cleanest in the Philippines.

Construction and Completion

Construction on the Pantabangan Dam began in 1971, marking a major engineering effort to harness the flow of the Pampanga River. The project was completed in 1977, establishing the dam as an active and vital resource for the surrounding agricultural and energy sectors. The earth-fill embankment design was chosen to effectively manage the river's flow and create the large storage capacity required for its diverse functions.

Key Functions

The dam's primary functions are threefold. First, it provides a reliable water supply for irrigation, supporting the agricultural productivity of Nueva Ecija and neighboring areas. Second, it facilitates hydroelectric power generation, contributing to the energy grid of Luzon. Third, the reservoir plays a crucial role in flood control, mitigating the impact of seasonal flooding on downstream communities and farmlands. These combined benefits underscore the dam's importance to the region's economic and environmental stability.

History of the Pampanga Basin Development

Legislative Authorization and Early Planning

The development of the Pampanga Basin was formally authorized through Republic Act No. 5499, enacted in 1969. This legislative framework established the legal and financial foundation for transforming the Pampanga River into a multi-purpose resource. The act aimed to address the growing agricultural and energy demands of the Central Luzon region by integrating irrigation, hydroelectric power, and flood control into a single infrastructure project. Prior to the passage of the act, extensive site studies were conducted to evaluate the geological stability and hydrological potential of the Pantabangan area in Nueva Ecija. These preliminary investigations were critical in selecting the specific location for the earth-fill embankment structure that would eventually define the landscape of the municipality.

Groundbreaking and Construction Initiation

Construction on the Pantabangan Dam officially began in 1971. The groundbreaking ceremony was a significant political and engineering event, overseen by then-President Ferdinand Marcos. His personal involvement highlighted the national importance of the project, which was intended to serve as a cornerstone of the country’s agricultural modernization and energy independence strategies. The initiation of construction marked the transition from planning to physical realization, mobilizing labor and resources to the site in Pantabangan. The project was designed to create one of the largest reservoirs in Southeast Asia, with the dual goals of generating hydroelectric power and providing consistent water supply for irrigation. The earth-fill embankment design was chosen for its suitability to the local geology and the scale of the water retention required.

Completion and Initial Impact

The dam was completed in 1977, six years after the start of construction. This timeline reflected the complexity of building a major earth-fill structure in a tropical environment. Upon completion, the Pantabangan Lake reservoir began to serve its intended multi-purpose functions. It provided critical flood control for downstream communities in the Pampanga River basin, mitigating the seasonal flooding that had historically affected agricultural output. Additionally, the reservoir became a key source of hydroelectric power, contributing to the energy grid of Luzon. The water stored in Pantabangan Lake also supported extensive irrigation networks, enhancing rice production in Nueva Ecija and neighboring provinces. The completion of the dam in 1977 marked a significant milestone in the infrastructure development of the Philippines, establishing Pantabangan as a vital node in the region’s water and energy systems.

Construction and Relocation

Construction of the Pantabangan Dam commenced in 1971, marking the beginning of a major infrastructure project on the Pampanga River in Nueva Ecija. The engineering effort focused on building an earth-fill embankment structure designed to serve multiple critical functions for the region. As the project progressed through the mid-1970s, the physical footprint of the dam and its expanding reservoir, Pantabangan Lake, began to reshape the local landscape of the municipality of Pantabangan.

Community Relocation

The creation of the reservoir required the displacement of local communities living along the Pampanga River basin. Approximately 1,300 people were relocated to accommodate the rising water levels and the structural needs of the earth-fill embankment. This relocation effort was a significant social component of the project, as families had to move from their ancestral lands to make way for what would become one of the largest reservoirs in Southeast Asia. The process involved coordinating the movement of households to ensure the continuity of the construction schedule while establishing new settlements for the displaced residents.

Completion and Operational Start

The construction phase concluded in 1977, with the dam officially completed that year. The facility became operational in February 1977, initiating its role in providing water for irrigation, generating hydroelectric power, and offering flood control for the surrounding areas. Upon its activation, the Pantabangan Lake reservoir began to function as a key water source for the region, noted for its relative cleanliness compared to other Philippine water bodies. The completion of the dam in 1977 established it as a vital multi-purpose infrastructure asset for Nueva Ecija and the broader Luzon region, integrating water management and energy production into a single earth-fill structure.

Engineering Design and Specifications

Pantabangan Dam is constructed as an earth-fill embankment structure situated on the Pampanga River. The engineering design prioritizes multi-purpose utility, integrating water storage for irrigation, hydroelectric power generation, and flood control mechanisms. The dam's physical dimensions are substantial, with a height of 107 m and a length of 1,615 m. These specifications support the creation of Pantabangan Lake, which is recognized as one of the largest reservoirs in Southeast Asia and noted for its water quality.

Technical Specifications

Parameter	Value
Dam Type	Earth-fill embankment
Height	107 m
Length	1,615 m
River	Pampanga River
Location	Pantabangan, Nueva Ecija
Construction Start	1971
Completion Year	1977

The construction phase began in 1971 and concluded in 1977, resulting in an active infrastructure asset. The earth-fill composition involves significant volume of compacted soil and rock, typical for embankment dams of this scale. The spillway design is integral to managing the inflow from the Pampanga River, ensuring that excess water can be released efficiently to maintain reservoir levels and mitigate downstream flooding. The structural integrity of the dam is designed to withstand regional seismic activity, a critical consideration for infrastructure in Luzon. The reservoir's capacity supports extensive irrigation networks in Nueva Ecija, a key agricultural province. The dam's operation continues to provide hydroelectric power, contributing to the regional energy mix. The cleanliness of Pantabangan Lake is maintained through careful management of the catchment area and the dam's filtration capabilities. The engineering standards applied during the 1971–1977 construction period have allowed the dam to remain operational and effective in its multi-purpose role.

Hydroelectric Power Generation

The Pantabangan Dam serves a critical role in the energy infrastructure of Central Luzon through its integrated hydroelectric power generation facilities. As a multi-purpose earth-fill embankment structure on the Pampanga River, the dam harnesses the kinetic energy of the river's flow to produce electricity, complementing its primary functions of irrigation and flood control. The hydroelectric component is housed within a dedicated powerhouse structure that converts the potential energy stored in Pantabangan Lake into electrical output for the regional grid.

Turbine-Generator Units

The power plant is equipped with two main generating units, each utilizing a Francis turbine design. The Francis turbine is a type of reaction turbine that is widely used in hydroelectric power plants due to its versatility and efficiency across a range of head and flow conditions. Each of these turbine-generator sets has an installed capacity of 60 MW. Together, the two units provide a total installed capacity of 120 MW for the Pantabangan Hydroelectric Power Plant. This output contributes to the energy mix of Nueva Ecija and the broader Luzon grid, providing a renewable energy source that fluctuates with the seasonal water levels of the reservoir.

Hydraulic Infrastructure

The hydraulic system that drives the turbines consists of several key components designed to manage the flow of water from the reservoir to the river downstream. Water is drawn from the Pantabangan Lake reservoir and channeled through penstocks. These large-diameter pipes or tunnels convey the water under pressure from the intake structures near the dam face to the turbine inlets within the powerhouse. The dimensions and material composition of the penstocks are engineered to withstand the hydraulic head and flow rates characteristic of the Pampanga River's hydrology.

After passing through the Francis turbines, the water is discharged into the tailrace channel. The tailrace is the conduit that carries the water from the turbine outlets back to the main riverbed. This channel helps to regulate the water level at the turbine discharge point and minimizes turbulence, ensuring efficient energy extraction. The design of the tailrace channel is integral to the overall hydraulic efficiency of the plant, allowing for the smooth reintegration of the generated water flow into the Pampanga River ecosystem downstream of the dam.

The Submerged Town of Pantabangan

The construction of the Pantabangan Dam fundamentally altered the geography of the municipality of Pantabangan in Nueva Ecija. The multi-purpose earth-fill embankment dam, completed in 1977, created Pantabangan Lake, one of the largest reservoirs in Southeast Asia. This hydroelectric and irrigation project required the submergence of the original townsite, transforming a bustling municipal center into an underwater cultural heritage zone. The reservoir, noted for being one of the cleanest in the Philippines, now holds the ruins of the old town, which emerge during periods of low water levels.

Emergence of Submerged Ruins

The visibility of the old town is cyclical, dependent on the water levels of the Pampanga River and the operational needs of the dam. During significant droughts or maintenance drawdowns, the ruins become accessible to visitors and researchers. Notable emergences occurred in 1983, 2014, 2020, 2024, and 2026. These events allow the public to witness the Saint Andrew Church cross, the municipal hall, and the cemetery that once defined the town's layout. The 2014 and 2020 drawdowns were particularly prominent, revealing extensive portions of the town's infrastructure. The 2024 and 2026 appearances have continued this pattern, offering renewed interest in the submerged heritage site.

Cultural Heritage Designation

The submerged town is recognized as a significant cultural heritage zone. The visibility of the ruins has spurred efforts to preserve and document the site. The Saint Andrew Church, a key landmark, remains a focal point for heritage enthusiasts. The municipal hall and cemetery provide insight into the daily life and social structure of the pre-dam community. The designation as a cultural heritage zone underscores the importance of preserving the memory of the old town. This status helps in coordinating conservation efforts and managing visitor access during low water periods. The site serves as a tangible link to the history of Nueva Ecija and the impact of infrastructure development on local communities.

Reservoir Characteristics and Aquaculture

The Pantabangan Dam creates a significant water body known as Pantabangan Lake, which serves as a critical component of the multi-purpose infrastructure project in Nueva Ecija. The reservoir is recognized for its substantial volume and water quality, often cited as one of the largest in Southeast Asia and among the cleanest in the Philippines. This large surface area supports diverse ecological functions, providing essential habitat for aquatic life and facilitating recreational and economic activities for the surrounding communities in the municipality of Pantabangan.

Hydrological Features and Siltation

Located on the Pampanga River, the reservoir plays a vital role in regional water management. The earth-fill embankment structure, completed in 1977, holds back water to regulate flow for downstream irrigation and hydroelectric power generation. The catchment area feeding into Pantabangan Lake is extensive, contributing to the reservoir's capacity to manage seasonal variations in water levels. Over the decades, siltation has become a notable factor in the reservoir's long-term management. Sediment accumulation from the upstream catchment gradually reduces the effective storage capacity, impacting both flood control efficiency and power generation potential. Monitoring and management of siltation are essential to maintain the reservoir's designed functionality and ensure the longevity of the dam's operational life.

Aquaculture and the BFAR Expansion Project

The ecological richness of Pantabangan Lake has made it a prime location for aquaculture, supporting local fisheries and contributing to the food security of the region. In 2024, the Bureau of Fisheries and Aquatic Resources (BFAR) initiated the Pantabangan Aquaculture Park Project expansion to enhance the productivity and sustainability of fish farming in the area. This project aims to modernize infrastructure, introduce improved fish strains, and implement better management practices to maximize yield while preserving water quality. The expansion reflects a strategic effort to leverage the reservoir's resources for economic growth, benefiting local fisherfolk and stakeholders in Nueva Ecija. By integrating aquaculture with the dam's primary functions of irrigation and power generation, the project underscores the multi-purpose nature of the Pantabangan complex.

Why it matters

Pantabangan Dam serves as a critical infrastructure asset for the Central Luzon region, functioning as a multi-purpose earth-fill embankment structure on the Pampanga River. Its primary operational roles include providing essential water for irrigation, generating hydroelectric power, and affording significant flood control for the surrounding areas. The reservoir created by the dam, known as Pantabangan Lake, is widely recognized as one of the largest in Southeast Asia. Additionally, the lake is noted for being one of the cleanest water bodies in the Philippines, highlighting the environmental quality of the catchment area.

Role in the Pampanga Basin

The dam plays a vital role in managing the hydrology of the Pampanga Basin. By regulating the flow of the Pampanga River, it supports agricultural productivity in Nueva Ecija and downstream provinces. The hydroelectric power generation contributes to the energy mix of the region, while the flood control capabilities help mitigate the impact of seasonal rainfall and potential flooding events. Construction on the dam began in 1971 and was completed in 1977, marking a significant engineering achievement for the time. The structure remains active, continuing to serve the multi-purpose needs of the local and regional populations.

Cultural Heritage and El Niño

Beyond its engineering and environmental significance, the Pantabangan Lake area holds unique cultural heritage value. The reservoir has revealed historical sites that are often obscured by water levels. Notably, during periods of El Niño, which cause significant water level drops, these heritage sites become more accessible and visible. This phenomenon allows for the study and appreciation of the historical context of the region, linking the natural resource management with the cultural narrative of the area. The interplay between the natural cycles of El Niño and the exposure of heritage sites adds a layer of dynamic interest to the Pantabangan Dam and its surrounding environment.

What are the environmental impacts of the Pantabangan Reservoir?

The environmental management of the Pantabangan Reservoir is defined by challenges related to sedimentation and the integration of aquaculture. As an earth-fill embankment dam on the Pampanga River, the reservoir serves critical multi-purpose functions including irrigation, hydroelectric power generation, and flood control. However, the accumulation of silt from the river basin directly impacts the storage capacity and longevity of the infrastructure. The reservoir is considered one of the largest in Southeast Asia and one of the cleanest in the Philippines, yet maintaining this status requires ongoing environmental monitoring.

Siltation and Reservoir Life

Siltation is a primary environmental concern for the Pantabangan Dam. Over time, sediment carried by the Pampanga River settles at the bottom of the reservoir, reducing its effective storage volume. This process affects the efficiency of flood control and the consistency of water supply for downstream irrigation and power generation. Estimates indicate a reservoir life of 107 years, a metric that reflects the rate at which sediment fills the available capacity. This projected lifespan underscores the need for continuous sediment management strategies to preserve the dam’s multi-purpose utility. The construction of the dam began in 1971 and was completed in 1977, establishing the baseline from which siltation rates are measured. As the reservoir ages, the balance between water inflow and sediment deposition becomes increasingly critical for maintaining the 107-year estimate.

Aquaculture and Water Quality

The reservoir also supports significant aquaculture activities, which introduce additional environmental variables. An aquaculture project utilizing high-density polyethylene fish cages has been implemented to enhance fish production in the Pantabangan Lake area. These cages allow for concentrated fish farming, which can improve yield but also require careful management of waste and water quality. The use of high-density polyethylene materials is chosen for their durability and resistance to the aquatic environment, but the overall impact on the lake’s cleanliness is monitored to ensure it remains one of the cleanest reservoirs in the Philippines. The integration of aquaculture must be balanced with the reservoir’s primary roles in flood control and hydroelectric power generation. Environmental impacts from the fish cages, such as nutrient loading and potential oxygen depletion, are considered in the broader management of the Pantabangan Dam’s ecosystem. The active status of the dam since 1977 continues to support these diverse uses, requiring ongoing assessment of how aquaculture affects the water quality and sediment dynamics of the Pampanga River system.
