Ipo Dam: Infrastructure, History and the Battle of Ipo Dam

Overview

Property	Value
Entity Type	Dam
Country	Philippines
Region	Luzon
Province	Bulacan
Municipality	Norzagaray
Coordinates	14.86666667, 121.15
Status	Active
Year Established	1984
Normal Water Level	101 m

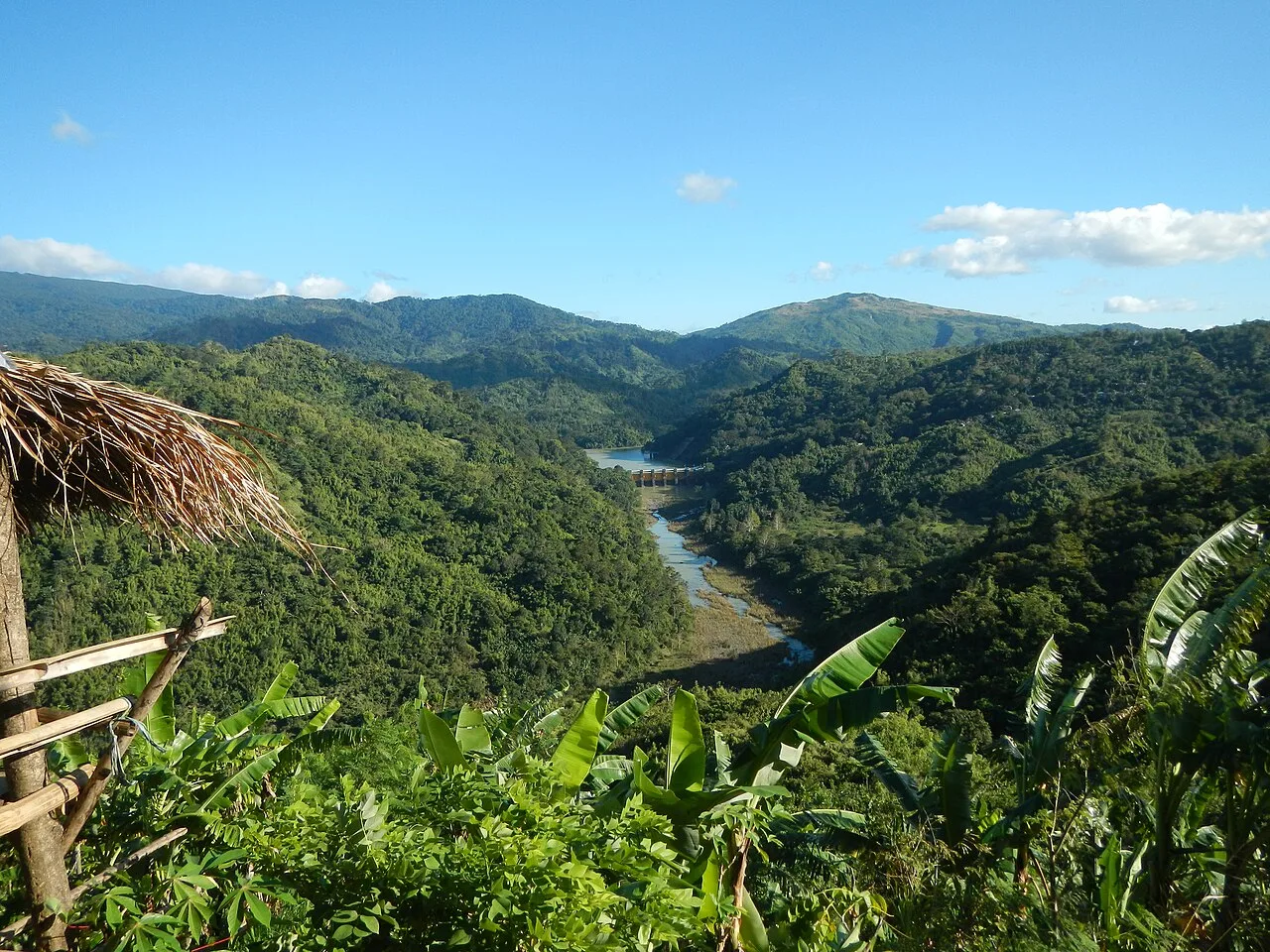

Ipo Dam is a concrete gravity dam located in Norzagaray, Bulacan, in the Luzon region of the Philippines. The structure serves as a critical component of the Angat-Ipo-La Mesa water system, which supplies water to Metro Manila and surrounding areas. The dam is situated approximately 7.5 kilometres downstream from the Angat Dam, within the boundaries of the Angat Watershed Forest Reserve. This strategic positioning allows for the efficient regulation and storage of water flow from the upstream Angat Reservoir before it is conveyed further downstream.

Constructed as a concrete water reservoir gravity dam, Ipo Dam was established in 1984. The dam's design relies on its massive weight to resist the horizontal force of the water it holds back, a common engineering approach for reservoirs in the region. The normal water level of the reservoir is maintained at 101 metres. As an active structure, the dam continues to play a vital role in the hydrological management of the Angat watershed, ensuring consistent water availability for domestic, industrial, and recreational uses in the downstream communities.

The Angat-Ipo-La Mesa system represents a sequential arrangement of reservoirs that optimize water distribution. Ipo Dam functions as the intermediate storage facility in this chain. Its location in Norzagaray places it in a key geographical zone that balances the catchment area of the Angat Watershed Forest Reserve with the delivery infrastructure leading to the La Mesa Reservoir. The dam's operational status remains active, contributing to the resilience of the water supply network in the Luzon region.

Engineering Specifications and Design

The Ipo Dam is constructed as a concrete gravity structure, designed to withstand the hydrostatic pressure of the reservoir through its own mass. This engineering approach is typical for dams built on relatively solid foundations within the Angat Watershed Forest Reserve. The facility serves as a critical intermediate storage component within the broader Angat-Ipo-La Mesa water system, regulating the flow from the upstream Angat Dam to the downstream La Mesa Reservoir.

Technical specifications indicate a normal water level of 101 m. This elevation is managed through a spillway system equipped with seven radial floodgates. These gates allow for precise control of water release, ensuring that the reservoir does not exceed its operational limits during peak inflow periods. The dam’s location, approximately 7.5 kilometres downstream of the Angat Dam, optimizes the gravity-fed flow of water through the system.

Technical Parameters

Parameter	Value
Structure Type	Concrete Gravity Dam
Normal Water Level	101 m
Storage Capacity	7.5 million cubic metres
Spillway Configuration	Seven radial floodgates
Location Context	7.5 km downstream of Angat Dam
Watershed	Angat Watershed Forest Reserve

The storage capacity of 7.5 million cubic metres provides essential buffer storage for the metropolitan water supply. This volume is strategically sized to handle seasonal variations in rainfall and consumption patterns within the Angat-Ipo-La Mesa system. The concrete gravity design ensures long-term structural stability, minimizing the need for complex mechanical support systems compared to arch or embankment dams. The seven radial floodgates are critical for flood control, allowing rapid discharge of excess water to prevent overtopping during heavy monsoon seasons or typhoon-induced inflows.

Watershed Hydrology and Topography

The Ipo Dam serves as a critical component of the Angat-Ipo-La Mesa water system, situated within the broader Angat Watershed Forest Reserve. This reservoir is located approximately 7.5 kilometres downstream from the larger Angat Dam, nestled in the municipality of Norzagaray in the province of Bulacan. The hydrological performance of the Ipo Dam is directly influenced by the characteristics of its surrounding watershed, which spans an area of 70 square kilometers. This catchment area is defined by its mountainous terrain and moderate forest cover, which play essential roles in regulating water flow and maintaining sediment levels within the reservoir.

Climate and Precipitation Patterns

The watershed experiences a significant volume of precipitation, with an average annual rainfall of 3500 mm. This consistent rainfall pattern ensures a steady inflow of water into the Ipo Reservoir, supporting its function as a major water source for the region. The topography of the area, characterized by steep slopes and dense vegetation, facilitates rapid runoff during peak rainy seasons, which is crucial for maintaining the dam's normal water level of 101 m. The combination of high rainfall and the watershed's physical structure contributes to the reliability of the water supply, making the Ipo Dam a vital link in the chain that delivers fresh water to downstream consumers.

Tributaries and River Systems

The hydrology of the Ipo Dam is further defined by several key tributaries that feed into the reservoir. The primary watercourses include the Ipo River, the Sapa Pako River, and the Sapa Anginon River. These rivers collect runoff from the forested slopes of the Angat Watershed Forest Reserve and channel it into the main body of the dam. The Ipo River, being the namesake of the dam, plays a dominant role in the reservoir's inflow dynamics. The Sapa Pako and Sapa Anginon rivers also contribute significantly, ensuring that the reservoir maintains adequate volume even during periods of variable rainfall. The health of these tributaries is closely monitored, as their water quality directly impacts the overall potability of the water stored in the Ipo Dam.

Water Diversion and Distribution System

The Ipo Dam serves as a critical intermediate storage facility within the larger Angat-Ipo-La Mesa water supply system, which provides potable water to Metro Manila and surrounding provinces. As a concrete gravity dam located in Norzagaray, Bulacan, its primary function extends beyond simple reservoir management; it acts as a pivotal node for diverting water from the Angat Watershed Forest Reserve to downstream distribution points. The system is designed to manage flow rates and ensure consistent supply to the Novaliches Portal and the La Mesa Dam, utilizing a complex network of intake structures, tunnels, and aqueducts.

Intake Structures and Tunnel Network

Water diversion from the Ipo Reservoir is facilitated through three dedicated intake structures. These intakes are strategically positioned to draw water at varying levels, allowing for flexible operation depending on the reservoir's normal level of 101 m. Once water enters the intake structures, it is channeled into three connecting tunnels. These tunnels bore through the topography of the Bulacan landscape, transporting water efficiently from the Ipo Dam site toward the downstream infrastructure. The use of multiple tunnels provides redundancy and capacity management, ensuring that water flow can be maintained even if one conduit requires maintenance or experiences fluctuating pressure.

Aqueduct Connections and Downstream Distribution

Following the tunnel network, the water is distributed through five connecting aqueducts. These aqueducts link the Ipo Dam system to the Novaliches Portal and the La Mesa Dam. The La Mesa Dam, located further downstream, serves as the final storage reservoir before water is treated and distributed to consumers in Metro Manila. The integration of these five aqueducts ensures a steady conveyance of water, bridging the geographical gap between the Bulacan reservoirs and the urban water demand centers. This multi-stage diversion system—comprising three intakes, three tunnels, and five aqueducts—highlights the engineering complexity required to maintain the Angat-Ipo-La Mesa water system's reliability. The entire infrastructure operates under the governance of the water system's managing body, ensuring that the concrete gravity dam and its associated conveyance structures function cohesively to meet regional water needs.

History of the Ipo Dam

Early Infrastructure and the 1938 Structure

The water management infrastructure in the Norzagaray municipality of Bulacan has evolved significantly to meet the growing demands of the Luzon region. Historical development of the site began with the construction of the original Ipo Dam, which was completed in December 1938. This earlier structure was situated approximately 200 metres upstream from the location of the current facility. The initial dam played a crucial role in the early stages of the regional water supply network, serving as a key component before the expansion of the broader Angat-Ipo-La Mesa water system. Its placement within the Angat Watershed Forest Reserve highlighted the strategic importance of the location for capturing and storing water resources for downstream consumption.

Construction and Completion of the New Dam

To address increasing capacity requirements, a new concrete gravity dam was constructed to replace and augment the older structure. This modern facility was completed in January 1984, marking a significant milestone in the infrastructure history of Bulacan. The new Ipo Dam is located about 7.5 kilometres downstream of the Angat Dam, integrating more effectively into the Angat Watershed Forest Reserve. As a concrete water reservoir gravity dam, the structure was engineered to handle greater volumetric loads and improve water regulation efficiency. The completion of this project in 1984 solidified the dam's role as a central node in the regional hydrological network, ensuring a more reliable water supply for the surrounding areas.

Capacity Enhancements and System Integration

The transition from the 1938 structure to the 1984 facility resulted in a substantial increase in water storage and processing capabilities. The new dam increased the system's capacity by approximately 2500 MLD (million litres per day), significantly boosting the output available for the Angat-Ipo-La Mesa water system. This enhancement allowed for better management of water levels, with the normal level of the reservoir established at 101 m. The integration of the new Ipo Dam into the larger water system improved the reliability of water distribution to downstream consumers, reducing dependency on single-source fluctuations. The operational status of the dam remains active, continuing to serve as a vital infrastructure asset in the province of Bulacan and the broader Luzon region.

The Battle of Ipo Dam (1945)

The Battle of Ipo Dam in May 1945 was a critical engagement during the final phases of the Luzon Campaign of World War II. The strategic importance of the dam lay in its role as a key component of the Angat-Ipo-La Mesa water system, which supplied fresh water to the growing military and civilian populations in the northern Luzon region. Control of the reservoir and its concrete gravity structure was essential for securing the approaches to Manila and ensuring a steady water supply for the advancing Allied forces.

The battle involved coordinated efforts between the United States Army and local Filipino guerrilla units. The primary American force engaged was the 43rd Infantry Division, which advanced through the Angat Watershed Forest Reserve to dislodge Japanese defenders entrenched around the dam site. Supporting the ground troops was the United States Fifth Air Force, which provided aerial bombardment to soften Japanese positions and disrupt supply lines. The air support was crucial in neutralizing machine-gun nests and artillery positions that had been fortified along the ridges overlooking the reservoir.

On the Filipino side, the Yay Regiment of the Marking Guerrillas played a significant role in the operation. Under the command of Colonel Marcos V. Agustin, these guerrilla forces leveraged their intimate knowledge of the local terrain in Norzagaray, Bulacan. The Marking Guerrillas had conducted months of reconnaissance and skirmishes in the area, effectively isolating the Japanese garrison at Ipo Dam. Colonel Agustin’s forces coordinated closely with the 43rd Division, guiding American troops through the dense forest reserve and identifying key defensive strongholds. Their efforts were instrumental in flanking the Japanese positions and cutting off retreat routes.

The Japanese defenders had established a robust defensive perimeter around the dam structure, utilizing the natural topography of the watershed. The concrete gravity dam, with its normal water level at 101 meters, served as a formidable barrier and observation point. Japanese troops used the surrounding hills to create overlapping fields of fire, making a direct assault costly. However, the combined pressure from the Fifth Air Force’s strafing runs and the coordinated ground assault by the 43rd Division and the Yay Regiment gradually eroded Japanese resistance. The battle concluded with the successful capture of the dam, securing the water supply line and facilitating the continued advance toward Manila. This engagement highlighted the effective integration of regular army units and local guerrilla forces in the liberation of Central Luzon.

Why it matters

Ipo Dam serves as a vital hydraulic link in the Angat-Ipo-La Mesa water system, which is the primary source of potable water for Metro Manila and its surrounding provinces. Located within the Angat Watershed Forest Reserve in Norzagaray, Bulacan, the dam functions as a concrete gravity structure that regulates the flow of water from the larger Angat Dam, situated approximately 7.5 kilometres upstream. This strategic positioning allows for the controlled release of water into the La Mesa Reservoir, ensuring a steady supply to the capital region’s distribution network. The system’s efficiency relies heavily on the normal water level of 101 m at Ipo, which maintains the necessary hydraulic head for gravity-fed distribution and pumping stations downstream.

Strategic Importance in Metro Manila’s Water Supply

The dam’s role extends beyond simple storage; it acts as a critical buffer in the metropolitan water supply chain. By capturing and regulating runoff from the Angat Watershed, Ipo Dam mitigates the variability of rainfall in the Luzon highlands, providing a consistent flow to the La Mesa Reservoir. This continuity is essential for the daily water consumption of millions of residents in Metro Manila, supporting both domestic use and industrial demand. The integration of Ipo into the Angat-Ipo-La Mesa system exemplifies the engineered solution required to transport water from the mountainous regions of Bulacan to the densely populated urban centers of the National Capital Region.

Historical Significance During World War II

Beyond its modern hydraulic function, Ipo Dam holds historical significance as a strategic asset during World War II. The dam and its surrounding infrastructure were captured intact by Allied forces, marking a crucial moment in the liberation of the Luzon watershed. This preservation ensured that the water supply infrastructure remained operational during the chaotic transitions of the war, preventing a potential water crisis in the recovering metropolitan area. The intact capture of the dam highlighted its value not just as a local resource for Bulacan, but as a regional strategic point for military logistics and civilian survival during the conflict. This historical resilience underscores the dam’s enduring importance to the infrastructure of Luzon.

How does the Angat-Ipo-La Mesa system work?

The Ipo Dam functions as a critical intermediary component within the integrated Angat-Ipo-La Mesa water supply system, which serves as the primary source of potable water for Metro Manila. This system relies on a sequential gravity-fed flow of water through three major reservoirs, beginning at the highest elevation and ending at the distribution point for the National Capital Region. Its role is to regulate the flow from the primary source, the Angat Dam, before passing the water to the final storage facility, the La Mesa Dam.

Sequential Water Flow and Regulation

Water originates at the Angat Dam, the largest reservoir in the system, located in the province of Bulacan. From Angat, water flows downstream through a series of canals and tunnels to reach the Ipo Dam. The Ipo Dam acts as a regulating reservoir, helping to balance the supply from Angat with the demand from La Mesa. The normal water level at the Ipo Dam is maintained at 101 metres, a critical parameter for ensuring sufficient hydraulic head to push water further downstream without excessive reliance on pumping mechanisms. This gravity-fed design is a key feature of the system's efficiency, reducing energy costs associated with water transport.

Connection to La Mesa and Metro Manila

After passing through the Ipo Dam, water continues its journey to the La Mesa Dam, located in Quezon City. The Ipo Dam's position allows it to buffer fluctuations in water availability from Angat, ensuring a more consistent supply to La Mesa. This three-dam configuration—Angat, Ipo, and La Mesa—creates a resilient network that has supported the growing population of the National Capital Region since the system's development. The concrete gravity structure of the Ipo Dam, established in 1984, provides the necessary strength and stability to manage the significant volume of water passing through it annually. The entire system operates as a single hydrological unit, where the performance of each dam directly impacts the water security of the downstream communities.

What distinguishes the new Ipo Dam from the old dam?

The current Ipo Dam, completed in 1984, is a concrete gravity structure that serves as a critical component of the Angat-Ipo-La Mesa water system. The reservoir operates with a normal water level of 101 m. This facility is distinct from an earlier structure known as the "old" Ipo Dam, which was constructed in 1938. The original dam was located 200 metres upstream from the site of the current reservoir. The replacement project was undertaken to enhance storage capacity and improve the reliability of water supply for the downstream metropolitan areas.

Capacity and Water Supply Impact

The new Ipo Dam provides a storage capacity of 7.5 million cubic metres. This expansion was designed to address the growing demand for water in the Angat-Ipo-La Mesa system. The construction of the 1984 dam resulted in a significant increase in daily water yield. Specifically, the new structure added 2500 million litres per day (MLD) to the system's output. This increase in capacity allows for better regulation of water flow from the Angat Dam, ensuring a more consistent supply to the La Mesa Reservoir and, subsequently, to the metropolitan consumers. The strategic placement of the new dam, further downstream than its 1938 predecessor, optimizes the gravitational flow and storage efficiency within the watershed reserve.

The transition from the old dam to the new concrete gravity dam marked a major infrastructure upgrade for the region. The old dam, having served for nearly five decades, was surpassed by the need for greater volume and structural resilience. The new facility continues to operate actively, maintaining the water levels necessary for the continuous operation of the interconnected water system. The precise location and engineering specifications of the 1984 dam reflect the hydrological requirements of the Bulacan region and the broader Luzon water network.
