Bustos Dam: History, Rehabilitation and Operational Profile

Overview

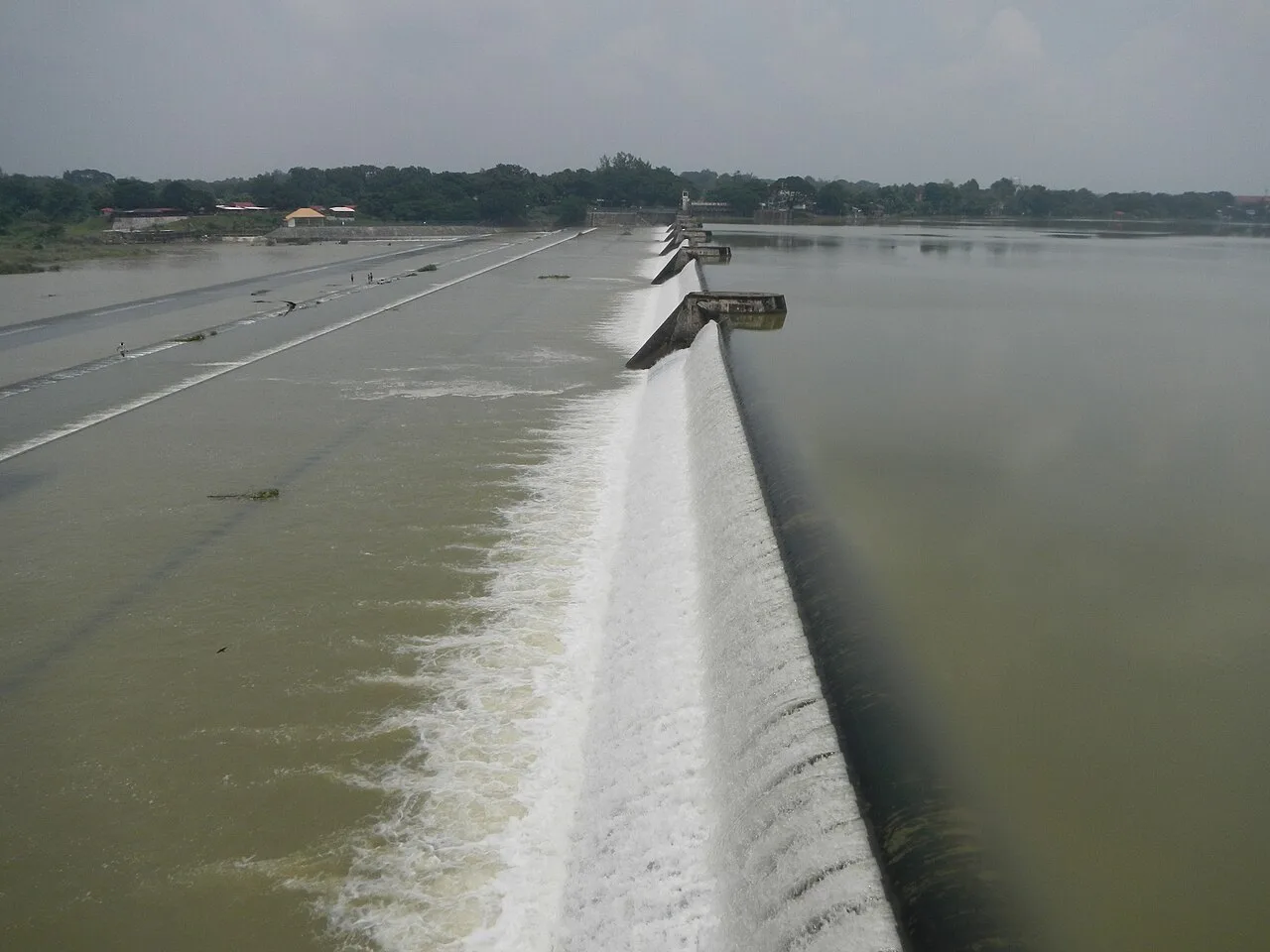

Bustos Dam, formally designated as the Angat Afterbay Regulator Dam (AARD), is an active irrigation infrastructure project located in Barangay Tibagan, Bustos, Bulacan. Situated in the Luzon region, the facility is operated by the National Irrigation Administration and was established in 1926. The dam is strategically positioned along the Angat River, serving as a critical component in the local water management system. Despite its distinct identity, the structure is frequently mistaken by locals and visitors for the nearby Angat Dam due to their geographic proximity and shared hydrological connection. This common confusion arises because the Angat Dam is a more prominent landmark in the region, yet the Bustos Dam plays a specialized role as an afterbay regulator, managing water flow downstream from the main reservoir.

Technical Specifications and Design

The dam is characterized by its compact and functional engineering design. The main structure sits approximately 18 meters above sea level. It is a relatively small dam, featuring a height of 2.5 meters and a six-span configuration. The design incorporates a rubber body that is both deflatable and inflatable, offering significant operational flexibility. This rubber dam technology provides several key advantages, including high resistance to sedimentation, which is a common challenge in riverine irrigation systems. The structure is noted for its economical construction and maintenance profile compared to traditional concrete or earth-fill dams. Additionally, the dam is equipped with an auto-deflation system, allowing for efficient water level management with minimal manual intervention. These features ensure that the Angat Afterbay Regulator Dam can effectively regulate water release to support agricultural needs in the Bustos area.

Location and Regional Context

Located in the municipality of Bustos, the dam is an integral part of Bulacan's irrigation infrastructure. The site in Barangay Tibagan benefits from its position on the Angat River, which provides a consistent water source for the regulator. The National Irrigation Administration oversees the facility, ensuring that water distribution aligns with the agricultural demands of the region. The dam's active status since its establishment in 1926 highlights its enduring role in local water resource management. While it may be overshadowed by the larger Angat Dam nearby, the Bustos Dam's specific function as an afterbay regulator is vital for optimizing water flow and minimizing sediment impact on downstream irrigation canals.

History and Early Development

The infrastructure now recognized as the Bustos Dam originated as a fixed-type river weir constructed in 1926. Located in Barangay Tibagan, Bustos, Bulacan, this early hydraulic structure was designed to regulate the flow of the Angat River. During this initial phase, the facility functioned primarily as a static barrier, establishing the foundational water management capabilities for the surrounding agricultural lands. The construction in 1926 marked the beginning of systematic irrigation efforts in the region, leveraging the natural topography of the Angat River valley to support local farming communities.

Modernization and Gate Installation

Significant technical upgrades were implemented in 1967 to enhance the dam’s operational flexibility. During this period, steel sector gates were installed to replace or augment the original fixed weir mechanisms. This modernization allowed for more precise control over water discharge, supporting a diversified range of uses including irrigation, power generation, and domestic water supply. The introduction of these steel gates represented a shift from simple flow regulation to a more dynamic management system, enabling operators to adjust water levels in response to seasonal variations and increasing demand from the growing population in Bulacan.

Expansion of the Angat-Maasim Rivers Irrigation System

The irrigation network associated with the dam, known as the Angat-Maasim Rivers Irrigation System (AMRIS), has undergone substantial expansion since its inception. In 1927, shortly after the dam's initial construction, the system served an area of 25,000 hectares. Over the ensuing decades, the service area grew to encompass 31,485 hectares. This expanded coverage benefits approximately 20,562 farmers across 20 towns in the region. The growth of AMRIS reflects the increasing importance of the Angat River’s water resources for agricultural productivity in Bulacan and adjacent areas, highlighting the dam's role as a critical component of the province’s irrigation infrastructure.

Why it matters

The Bustos Dam, officially designated as the Angat Afterbay Regulator Dam, holds a distinct position in Asian hydraulic engineering due to its unique construction and scale. It is recognized as the longest rubber dam in Asia, measuring 79 meters in length. This specific dimension also establishes the structure as the second largest rubber dam in the world, a distinction that highlights the innovative use of inflatable technology in the region’s water management infrastructure. The dam’s design relies on a rubber body that is both deflatable and inflatable, allowing for flexible water level control compared to traditional concrete or earth-fill structures. This technology provides resistance to sedimentation and includes an auto-deflation system, making it an economical solution for regulating the Angat River’s flow. The main dam structure sits approximately 18 meters above sea level, with a height of 2.5 meters and a six-span configuration that facilitates efficient water passage. Located in Barangay Tibagan in Bustos, Bulacan, the facility is often confused by locals with the larger Angat Dam due to its proximity to the town of Angat, but it serves a specialized regulatory function within the broader irrigation and supply network. The National Irrigation Administration operates the facility, ensuring it remains active and functional for regional needs since its establishment in 1926. The dam’s strategic location allows it to manage water distribution effectively, supporting agricultural and municipal demands across several key areas. Its significance extends beyond its physical dimensions, as it plays a critical role in the regional water supply for multiple municipalities and cities. The structure supports water availability for Real in Quezon, Rodriguez in Rizal, and Antipolo City, ensuring consistent flow for both domestic consumption and agricultural use. This distribution network underscores the dam’s importance to the economic and social stability of these communities, which rely on the regulated release of water from the Angat River system. The ability to quickly inflate or deflate the rubber body allows operators to respond to changing water demands and seasonal variations, providing a dynamic tool for water resource management. This flexibility is particularly valuable in a region where water availability can fluctuate significantly, impacting both farming yields and urban water security. The dam’s status as a major rubber dam in the world brings attention to the versatility of this engineering approach, demonstrating how inflatable structures can compete with traditional dams in terms of capacity and efficiency. The combination of its length, height, and technological features makes the Bustos Dam a notable example of modern irrigation infrastructure in the Philippines. Its continued operation and maintenance by the National Irrigation Administration ensure that it remains a vital component of the region’s water supply strategy, supporting the growth and development of the communities it serves. The dam’s role in supplying water to Real, Quezon, Rodriguez, Rizal, and Antipolo City highlights its broad impact, extending beyond the immediate locality of Bustos to influence water security across multiple provinces. This wide-reaching influence reinforces the dam’s importance as a key infrastructure asset in the Luzon region. The structure’s ability to resist sedimentation and maintain functionality through auto-deflation systems further enhances its long-term viability, reducing the need for frequent and costly maintenance interventions. As the second largest rubber dam globally, the Bustos Dam serves as a benchmark for similar projects, illustrating the potential of inflatable technology in managing water resources in diverse geographical settings. The dam’s integration into the Angat River system allows for coordinated water management, optimizing the use of available water for multiple purposes. This coordinated approach is essential for sustaining agricultural productivity and meeting the growing water demands of urban centers in the region. The Bustos Dam thus stands as a testament to the effective application of engineering innovation to address critical water supply challenges in the Philippines.

How does the rubber dam technology work?

The Bustos Dam utilizes specialized rubber dam technology, functioning as an afterbay regulator for the Angat River system. This engineering choice was made to create a flexible, low-head barrier that can be adjusted to manage water levels for irrigation and flood control. The structure is not a rigid concrete wall but rather a series of inflatable bladders that form the crest of the dam. This design allows the water surface elevation to be raised or lowered by inflating or deflating the rubber body with water or air, providing dynamic control over the river's flow.

Technical Specifications

The dam is a six-span structure with a height of 2.5 meters. The rubber dam technology offers several distinct advantages for this location. It provides significant resistance to sedimentation, as silt can wash over or around the deflated bladder more easily than a fixed concrete weir. The system is also noted for its economy in both construction and maintenance compared to traditional gated weirs. A key feature is the auto-deflation system, which allows the dam to lower automatically under specific hydraulic or mechanical conditions, reducing the risk of structural failure during peak flows.

Parameter	Specification
Clear Spans	4.6% 1.53 meters
Gate Heights	4.5 and 1.0 meters
Leaf Weights	5.4 and 1.0 tons
Operating Speed	0.3 m/min

The mechanical components supporting the rubber bladder include gates with specific dimensional and weight characteristics. The gate heights are recorded as 4.5 meters and 1.0 meters, with corresponding leaf weights of 5.4 tons and 1.0 tons. The operating speed of the dam's adjustment mechanism is 0.3 meters per minute, allowing for gradual and controlled changes in water elevation. These technical parameters ensure that the dam can respond efficiently to the hydrological demands of the Angat River while maintaining structural integrity through its easily deflatable and inflatable rubber body.

Rehabilitation and Structural Challenges

The structural integrity of the Bustos Dam has been subject to significant environmental stressors and engineering interventions over several decades. The facility experienced notable damage during a series of typhoons between 1968 and 1980, which tested the resilience of the rubber dam mechanism and the surrounding infrastructure. These meteorological events highlighted the vulnerability of the irrigation system to extreme weather patterns in the Luzon region, necessitating ongoing maintenance and structural assessments to ensure continued operation of the Angat Afterbay Regulator Dam.

1990 Typhoon Iriang Incident

A particularly severe incident occurred in September 1990 during the passage of Typhoon Iriang. The storm's intensity caused critical failure in the dam's gate system, specifically affecting the Bay 1 sector gate. The force of the water and wind carried the gate approximately 250 meters downstream, disrupting the flow regulation capabilities of the structure. This event underscored the importance of robust mechanical components in the dam's design, as the displacement of the sector gate directly impacted the efficiency of the irrigation network served by the Angat River.

Rehabilitation Efforts

In response to the accumulated damage and the 1990 incident, rehabilitation works were initiated to restore the dam's functionality. Initial temporary rehabilitation efforts were funded by the World Bank, providing essential financial support to stabilize the structure and address immediate structural deficiencies. These early interventions aimed to mitigate further deterioration and ensure that the dam could continue to serve its primary irrigation purpose for the local agricultural communities in Bustos, Bulacan.

A more comprehensive rehabilitation project was undertaken in 1997, led by Kurimoto, LTD., a company based in Osaka, Japan. This phase of rehabilitation focused on upgrading the dam's mechanical systems and reinforcing its structural components to better withstand future typhoons and operational stresses. The involvement of Kurimoto, LTD. introduced advanced engineering techniques and materials, enhancing the durability and efficiency of the rubber dam body and its auto-deflation system. These improvements were critical in maintaining the dam's status as an active and reliable irrigation facility, supporting the agricultural productivity of the region.

Recent Upgrades and Incidents

Infrastructure Rehabilitation and Funding

The structural integrity and operational efficiency of the Bustos Dam have been subjects of significant investment over the past two decades. In 2001, the Japan International Cooperation Agency (JICA) provided a grant-in-aid amounting to P500 million specifically designated for the repair and improvement of the dam (per JICA project records). This funding was critical in maintaining the functionality of the rubber dam's auto-deflation system and its resistance to sedimentation, ensuring continued irrigation support for the surrounding agricultural lands in Bulacan.

Further modernization efforts were initiated by the National Irrigation Administration (NIA) in 2014. The agency announced plans to bid out a P1-billion contract aimed at comprehensive upgrades to the facility (per NIA procurement announcements). This substantial financial commitment reflected the strategic importance of the Angat Afterbay Regulator Dam within the broader Luzon irrigation network, aiming to enhance its capacity to regulate water flow from the Angat River and mitigate flood risks for downstream communities.

Operational Incidents

Despite these improvements, the dam has faced operational challenges due to environmental factors. On May 1, 2025, a significant incident occurred when one of the dam's gates burst, a failure attributed to high temperatures affecting the rubber structure (per local news reports from May 2025). The sudden rupture prompted immediate flood warnings for areas downstream in Bustos and neighboring municipalities. The incident highlighted the sensitivity of the inflatable rubber body to thermal expansion and contraction, reinforcing the need for continuous monitoring and maintenance of the dam's mechanical and material components.

What distinguishes Bustos Dam from Angat Dam?

Local residents and visitors frequently conflate Bustos Dam with the more prominent Angat Dam, a misconception rooted in their close geographic proximity within the province of Bulacan. While both structures are integral components of the region's hydrological and irrigation infrastructure, they are distinct entities with separate functions, locations, and engineering characteristics. Clarifying this distinction is essential for accurate geographical understanding and infrastructure identification in the area.

Distinct Location and Identity

Bustos Dam, formally known as the Angat Afterbay Regulator Dam (AARD), is specifically situated in Barangay Tibagan in the municipality of Bustos, Bulacan. This location places it downstream from the main reservoir created by Angat Dam. The confusion arises because the two dams are part of the same broader water management system and are relatively close to one another, leading locals to often refer to the smaller structure simply as "Angat Dam." However, Angat Dam is a separate, larger entity located in the neighboring town of Angat. Bustos Dam serves as a critical regulator for the water released from the main Angat Reservoir, managing the flow into the irrigation canals that serve the agricultural lands of the region.

Engineering and Functional Differences

The physical and functional differences between the two structures are significant. Bustos Dam is classified as a small irrigation dam, designed specifically for afterbay regulation rather than primary water storage. The dam features a distinctive design characterized by a 2.5-meter high, six-span configuration. Key engineering features include an easily deflatable and inflatable rubber body, which provides flexibility in water level management. This design offers resistance to sedimentation, which is a common challenge in riverine irrigation systems, and includes an auto-deflation system for efficient operation. These economical and functional attributes distinguish it from the larger, more complex structural requirements of the main Angat Dam.

Understanding that Bustos Dam is the Angat Afterbay Regulator Dam helps clarify its role in the National Irrigation Administration's network. It is not a duplicate or an alternative name for Angat Dam, but a specialized component located in Barangay Tibagan, Bustos, working in tandem with the main reservoir to ensure consistent water distribution for local agriculture. This distinction is vital for researchers, engineers, and travelers navigating the infrastructure of Bulacan.
